CLAW

Two-Person Team Project with Zoe Liu

Spring 2023 Fundamental Computational Design

Software: Rhino, Grasshopper, Illustrator, PS, Enscape, Indesign

Instructor: Eddy Man Kim

In this project, we create a pavilion. We transform two conic sections that we got to create the shape. When we created the conic section, we kept the two cutting planes parallel so that the resulting surface would have two parallel edges. Then, we created four different iterations of surfaces by adjusting the angle and distance of the cutting planes. We mirror those surfaces along their two diagonals, creating four modules. Then, we developed four ways of arranging the modules, producing sixteen variations of structure.

We selected one variation, further developing it by adding more details. The final structure is symmetrical. It has three levels of hierarchy ---- the supporting frame, the two solid palettes, and the transparent palette with a grid structure between them. We imagine the pavilion to be a place for the public to relax, so we emphasize the sense of cleanliness and lightness by using simple materials. The solid and transparent pallet brings the contrast between lights and shadows, adding more interest to the pavilion.

Ideation + Process

We did some ideation sketches and early parametric exploration.

We also did some model studies.

This diagram illustrates the process we followed to develop the structure.

Technical Drawing

Long Elevation

Short Elevation

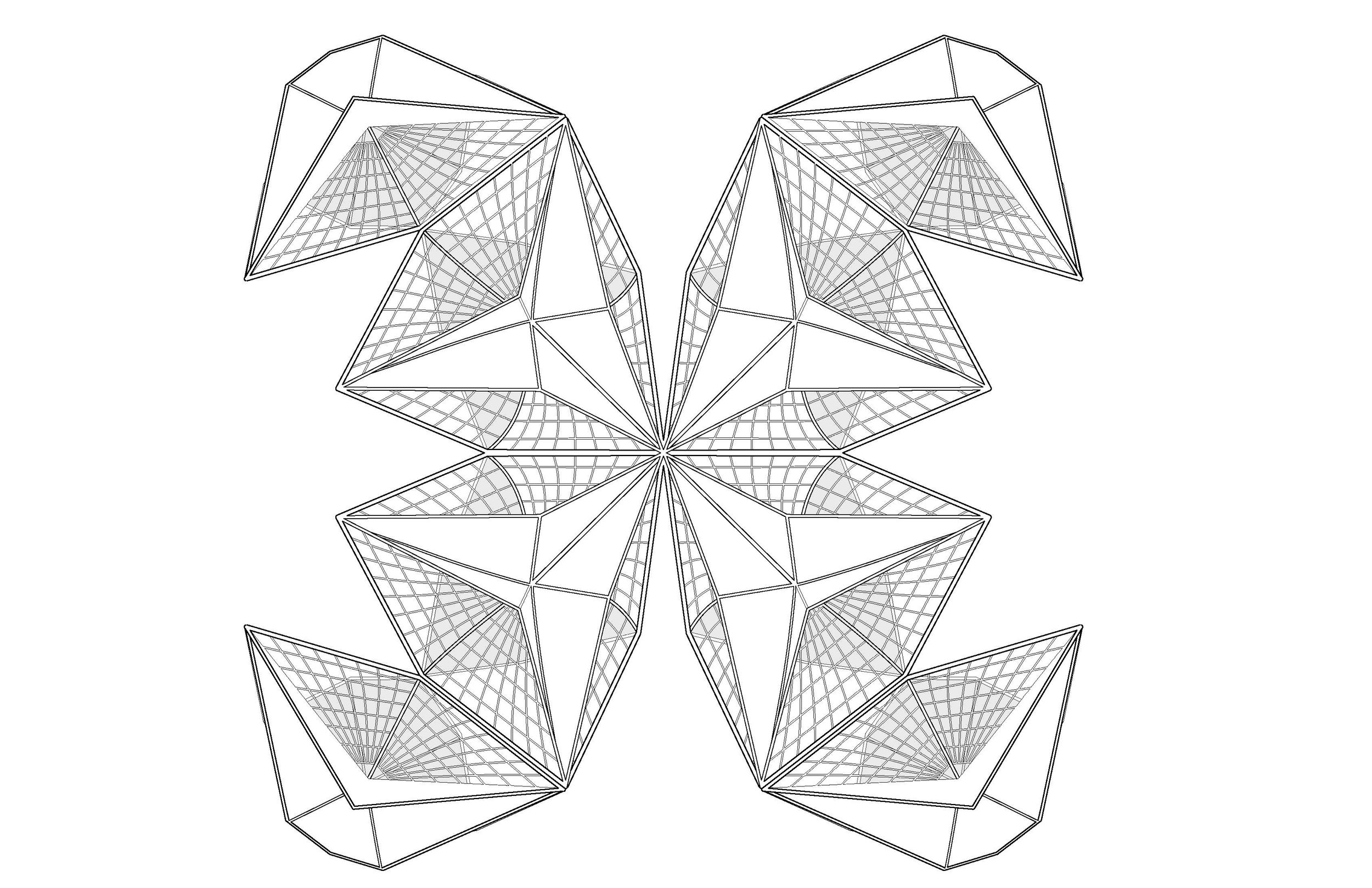

Plan

Axon

Final Rendering
